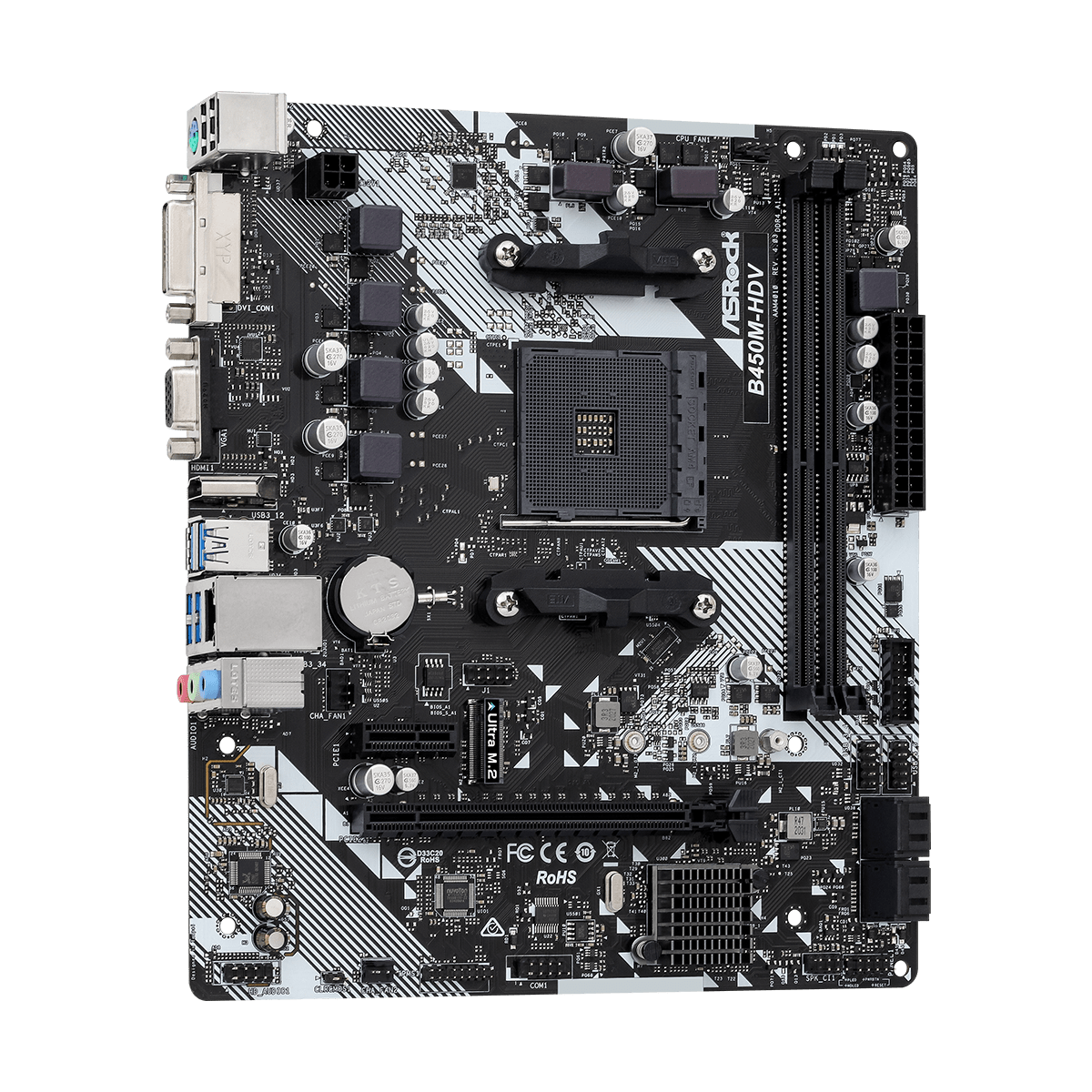

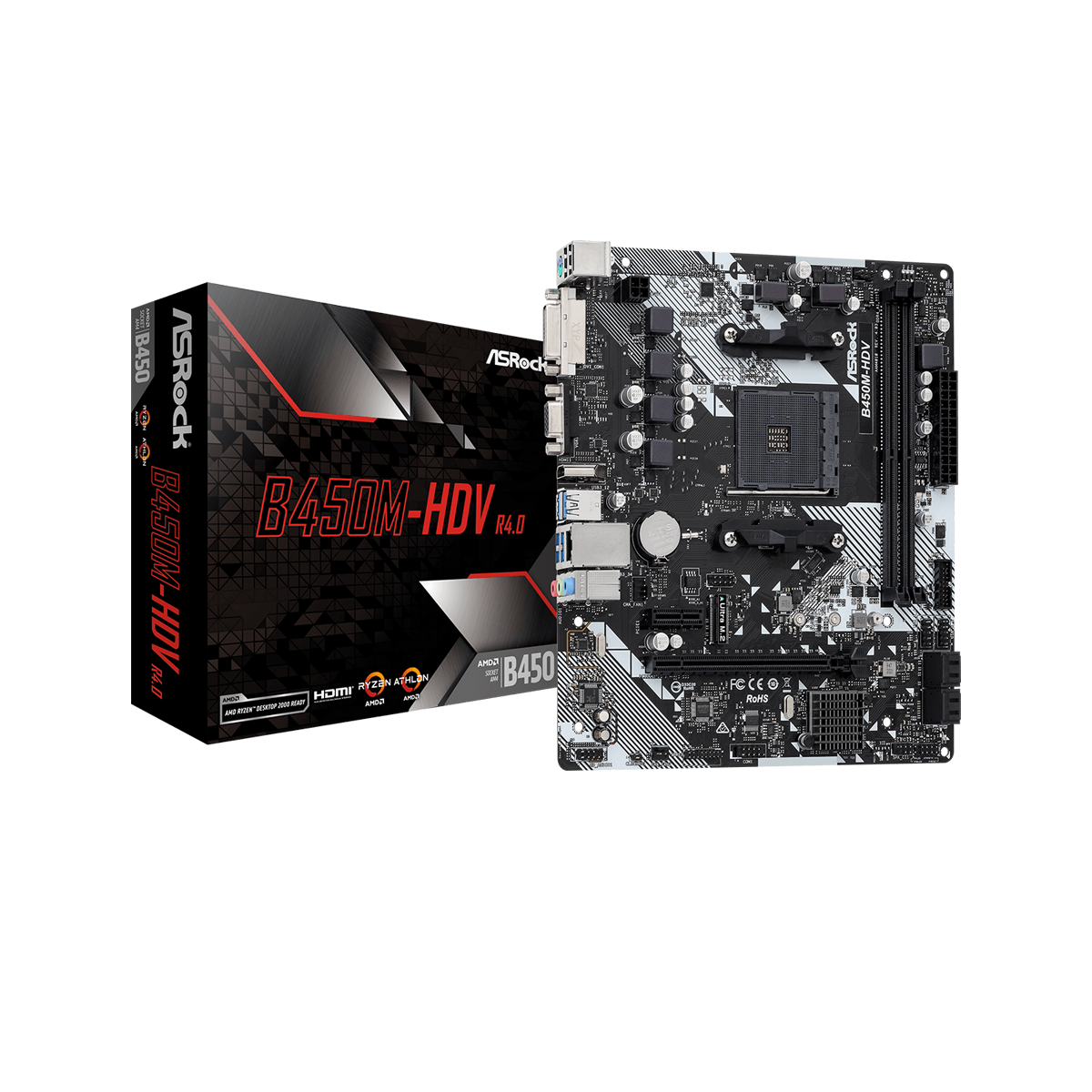

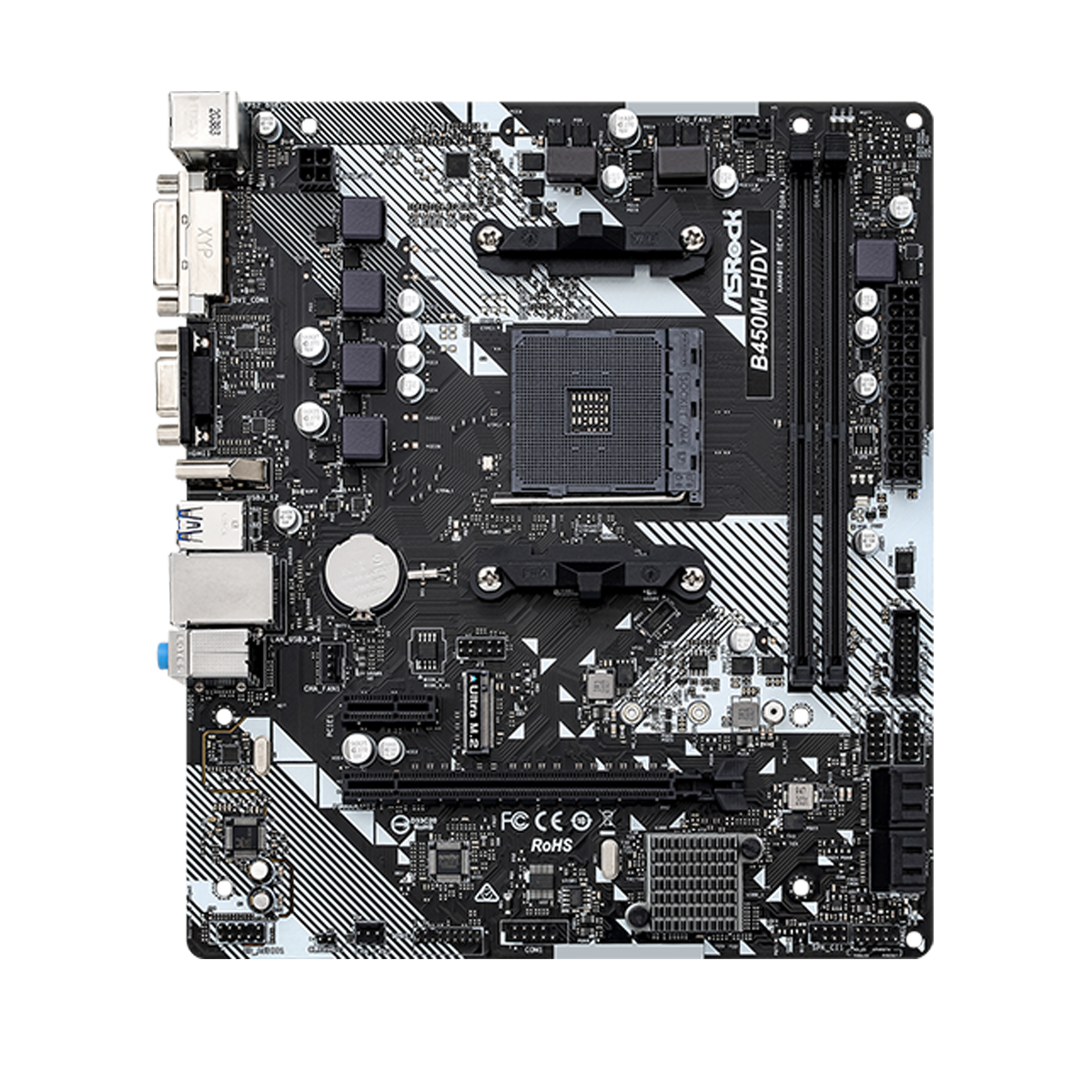

MAINBOARD ASROCK B450M-HDV-R4.0
MAINBOARD ASROCK B450M-HDV-R4.0 - Image 2
MAINBOARD ASROCK B450M-HDV-R4.0 - Image 3
MAINBOARD ASROCK B450M-HDV-R4.0 - Image 4
MAINBOARD ASROCK B450M-HDV-R4.0 - Image 5

MAINBOARD ASROCK B450M-HDV-R4.0

AMD B450, 2xDDR4 32GB (2400, 3200), 1xPCIe16, 1xPCIe1, 1xUltra M.2, Realtex Lan, D-Sub, HDMI, MicroATX, AM4 socket

฿1,590.00

Brands ASRock
Model B450M-HDV R4.0
CPU Support AMD AM4 Socket
6 Power Phase design
Supports CPU up to 105W
Socket AM4
Memory Support Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
Max. capacity of system memory: 32GB
15μ Gold Contact in DIMM Slots
Chipset AMD B450
Graphics
Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP 1.4 with DVI-D and HDMI Ports
Supports 4K Ultra HD (UHD) playback with HDMI Port
Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Supports Surge Protection
ELNA Audio Caps
Expansion Slots AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
– 1 x PCI Express 2.0 x1 Slot
*Supports NVMe SSD as boot disks
Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)*
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Internal I/O Connectors 1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
Back Panel Connectors 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Form Factor Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
Solid Capacitor design
Warranty 3 Years
