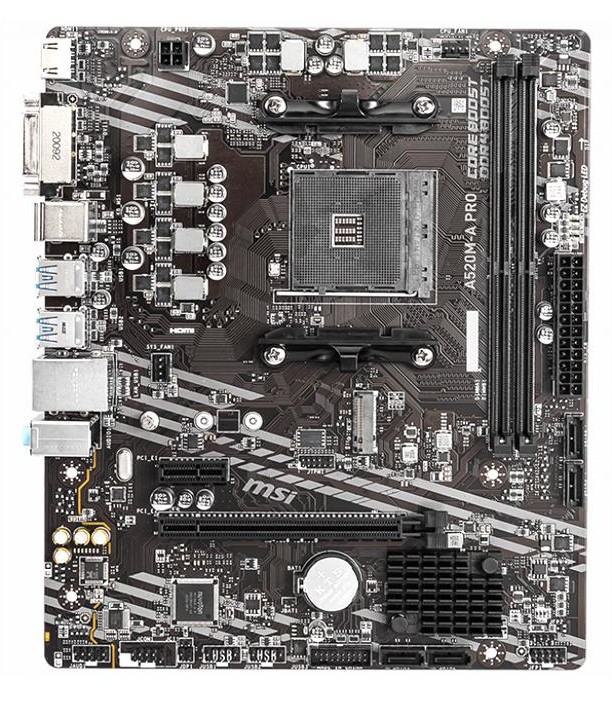

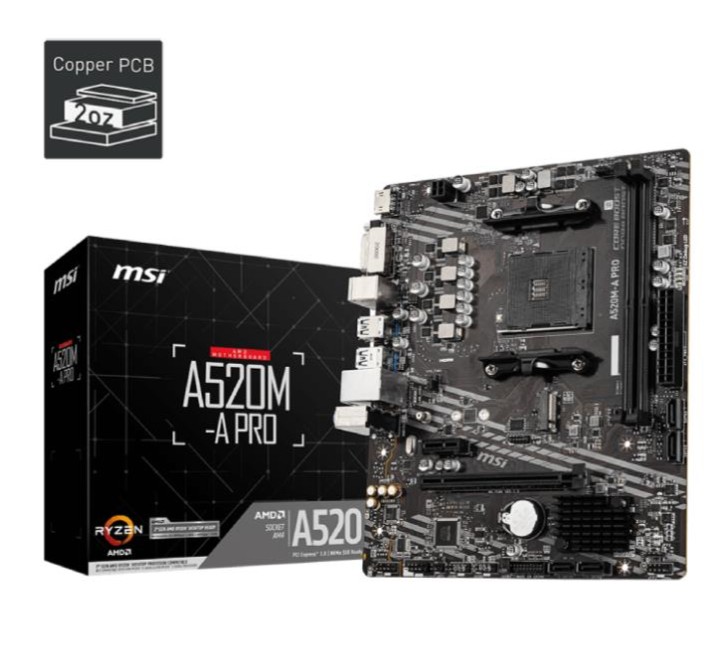

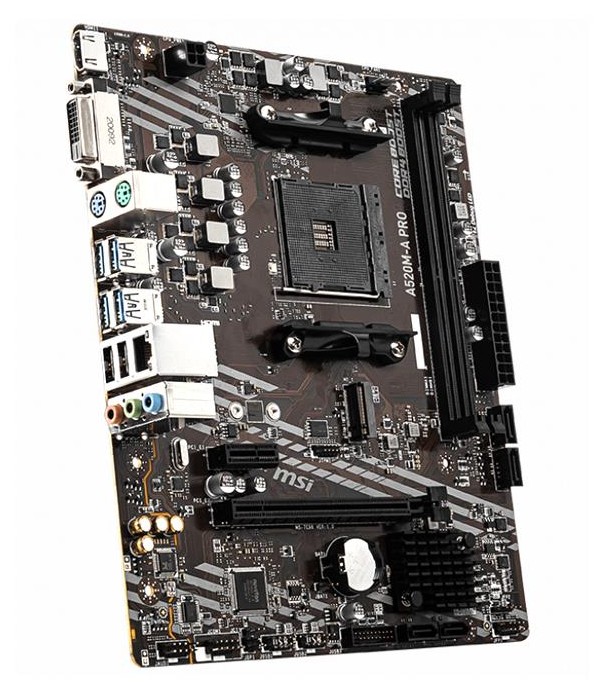

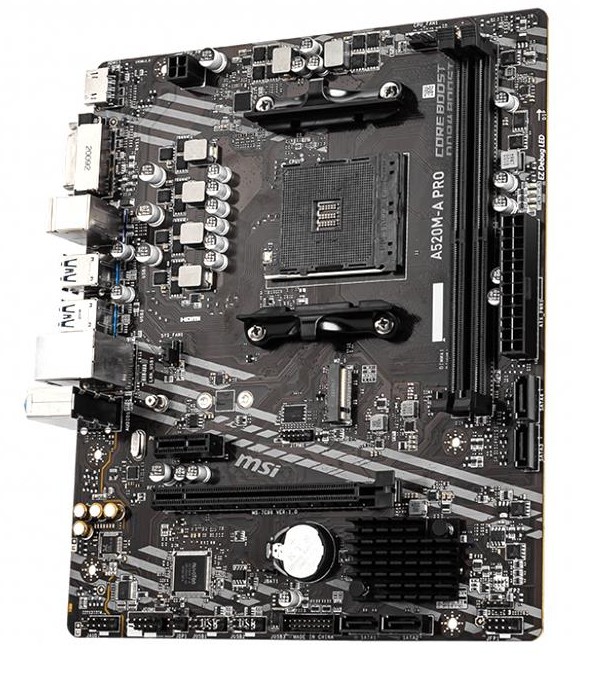

MSI MAINBOARD (AM4) MSI A520M-A PRO DDR4
MSI MAINBOARD (AM4) MSI A520M-A PRO DDR4 - Image 2
MSI MAINBOARD (AM4) MSI A520M-A PRO DDR4 - Image 3
MSI MAINBOARD (AM4) MSI A520M-A PRO DDR4 - Image 4
MSI MAINBOARD (AM4) MSI A520M-A PRO DDR4 - Image 5

MSI MAINBOARD (AM4) MSI A520M-A PRO DDR4

  • Support CPU : AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
  • From Factor : Micro ATX
  • Chipset : AMD A520 Chipset
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory MAX : 64GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 3.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN

1,450.00฿

CPU Support Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors
Socket AM4
Chipset AMD A520
CPU Brand AMD
Memory Support 2 x DDR4 memory slots, support up to 64GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
– 1DPC 1R max speed 4600 MHz
– 1DPC 2R max speed 3866 MHz

Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory Bus 4600
Graphics 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @60Hz*,**
Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz*
Maximum shared memory of 16 GB*Available for the processor with integrated graphics.
**Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support None
Audio Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots 1 x PCIe 3.0 x1 slot
1 x PCIe x16 slot
Maximum PCIe Version PCIe 3.0
Storage AMD A520 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M) (from AMD Processor)
– Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors
– Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors
– Supports 2242/ 2260/ 2280 storage devices
M.2 Storage Type Support NVMe, SATA
M.2 Slot 4
Special Features N/A
Software Features N/A
Operating System Support Windows 10 64-bit
BIOS N/A
Form Factor Micro ATX
H/W Monitoring N/A
USB AMD A520 Chipset
2 x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x M.2 slots (M-Key)
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 xTPM module connector
1 x Clear CMOS jumper

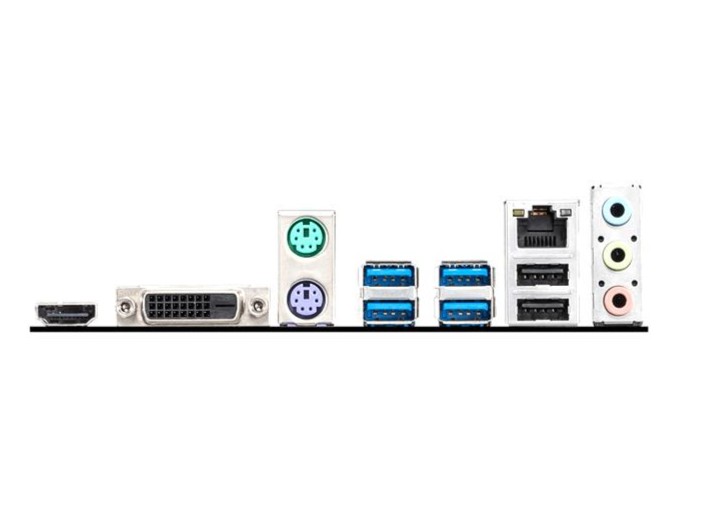

Back Panel Connectors 1 x LAN port
1 x HDMI
1 x DVI-D
2 x Keyboard / Mouse
4 x USB 3.2 Gen 1 5Gbps Type-A
2 x USB 2.0 Ports
3 x Audio Connectors
LAN 1 x Realtek® RTL8111H Gigabit LAN controller
Wireless Data Network None
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x M.2 slots (M-Key)
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 xTPM module connector
1 x Clear CMOS jumper
Dimension (cm) (W x L x H) : 20.00 x 23.60 x 3.60 cm
Package Dimension (cm) (W x L x H) : 26.00 x 26.00 x 5.50 cm
Net Weight (kg) 0.45 kg
Gross Weight (kg) 0.74 kg
Volume (cm³) 3,718.00 cm³
Package Contents N/A
warranty 3Y
